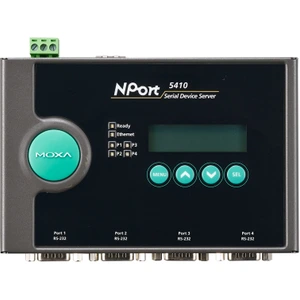

مبدل شبکه NPORT5410SeriesADAPTOR

10/100BaseT(X) Ports (RJ45 connector)

1.5kV (built-in)

Telnet Console, Windows Utility, Web Console (HTTP/HTTPS)

ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

IGMP v1/v2

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Android 3.1.x and later

SNTP

NPort 5410/5450/5450-T/5450I/5450I-T: DB9 male,NPort 5430/5430I: Terminal block

NPort 5410: RS-232,NPort 5430 Models: RS-422, RS-485,NPort 5450 Models: RS-232, RS-422, RS-485

Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet, Disabled

Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

5, 6, 7, 8

1, 1.5, 2

None, Even, Odd, Space, Mark

RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

2kV isolation for NPort 5430I/5450I/5450I-T

1kilo-ohm, 150 kilo-ohms

ADDC® (automatic data direction control)

120ohms

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Tx+, Tx-, Rx+, Rx-, GND

Tx+, Tx-, Rx+, Rx-, GND

Data+, Data-, GND

NPort 5410/5450/5450-T: 350 mA @ 12 VDC,NPort 5430: 320 mA @ 12 VDC,NPort 5430I: 530 mA @ 12 VDC,NPort 5450I/5450I-T: 554 mA @ 12 VDC

12to 48 VDC

1removable 3-contact terminal block(s),Power input jack

Built-in WDT

Built-in buzzer and RTC (real-time clock)

Metal

181x 103 x 33 mm (7.14 x 4.06 x 1.30 in)

158x 103 x 33 mm (6.22 x 4.06 x 1.30 in)

740g (1.63 lb)

LCD panel display (standard temp. models only),Push buttons for configuration (standard temp. models only)

Desktop, DIN-rail mounting (with optional kit), Wall mounting

Standard Models: 0 to 55°C (32 to 131°F),Wide Temp. Models: -40 to 75°C (-40 to 167°F)

40to 75°C (-40 to 167°F)-

5to 95% (non-condensing)

EN 55032/24

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV,IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m,IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV,IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV,IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m,IEC 61000-4-8 PFMF,IEC 61000-4-11

UL 60950-1

DNV (standard temp. models only)

NPort 5410/5450/5450I:,EN 55011: 2007+A2: 2007 Class A (Group 1) compliant,EN 60601-1-2: 2007 compliant

NPort 5410: 310,331 hrs,NPort 5430/5430I: 265,650 hrs,NPort 5450/5450I/5450-T/5450I-T: 206,903 hrs

Telcordia (Bellcore) Standard TR/SR

5 years
