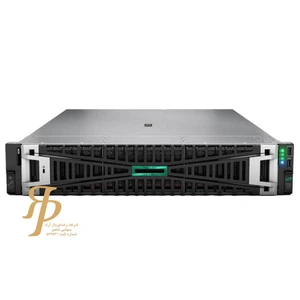

سرور اچ پی مدل DL380 G10 ظرفیت ۸SFF

سرور اچ پی - HP

8, for detailed descriptions reference the QuickSpecs

14.76 kg, 32.6 lb

1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model

2U

Intel

Intel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel® Xeon® Scalable 4100/4200 series Intel® Xeon® Scalable 3100/3200 series

4 to 28 core, depending on model

8.25 - 38.50 MB L3, depending on processor model

3.0TB with 128 GB DDR4, depending on processor model; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit, depending on processor model

24DIMM slots

82xx, 62xxR, 62xx, 52xxR, 52xx series processors, and the 4215R and 4215 processors., HPE DDR4 Smart Memory with optional Intel® Optane™ persistent memory 100 series for HPE, depending on processor model selected, Intel Optane Persistent Memory for HPE only supported on select 2nd Generation Intel Scalable Series Processors, to include:

HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors

Single rank

16 GB

6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional; 20 SFF NVMe optional; NVMe support via Express Bay will limit maximum drive capacity, 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD; 2 M.2 SATA SSD standard on primary riser, depending on configuration;

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)

Hot-plug redundant fans, standard

HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model

3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage., Additional HPE support and service coverage for your product can be purchased locally., Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home., For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Intel

1 or 2

3.9 GHz, maximum depending on processor

3.5TB (24 X 128 GB) LRDIMM; 6.0 TB (12 X 512 GB) Persistent Memory

Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

ProLiant DL380 G10 8sff

G10
